工法介绍：
五轴水泥土连续搅拌墙工法Five-Shafts Cement Soil MixingWall Method（简称”FCW工法”）。该工法通过五轴钻掘双喷搅拌钻机将土与水泥进行强制搅拌，使水泥加固土发生物理变化反应，从而增加土体强度。具体来说，FCW工法采用五轴水泥土搅拌桩技术，利用高集成化、高智能化的水泥搅拌成桩设备，通过机械设备及工艺流程两方面的革新，在施工工艺上较传统二轴、三轴水泥搅拌桩工法有显著提升。
Five-Shafts Cement Soil Mixing Wall Method (FCW)In this method, the soil and cement are forced to mix by a five-axis drilling and double-jetmixing drill, so that the cement-reinforced soil reacts with physical changes and increasesthe strength of the soil. Specifically, the FCW construction method adopts five-shaftscement mixing pile technology, uses highly integrated and highly intelligent cement mixingpile equipment, and significantly improves the construction technology compared with thetraditional two-shafts and three-shafts cement mixing pile construction method throughthe innovation of mechanical equipment and process flow.
产品介绍：

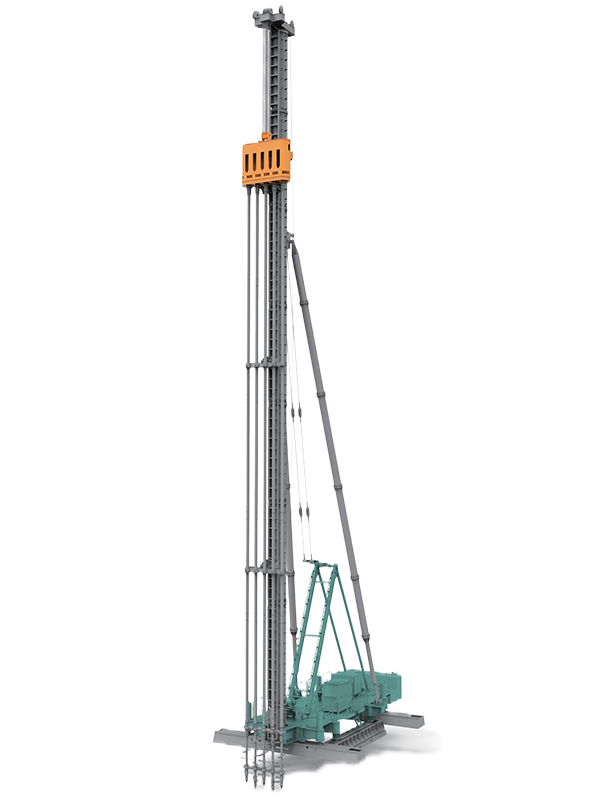

五轴钻掘双喷搅拌钻机即强搅微扰无土多轴搅拌钻机相比于传统的搅拌钻机，该强搅微扰无土多轴搅拌桩机相当于5根MJS（高压旋喷工法机），具有省水泥（可省50%）、无置换渣土、节能高效（效率提升100%）等特点，是一种绿色节能的施工设备。施工流程基本上与三轴类似，按照“二喷二搅”施工工艺（即下沉和上提的时候均喷浆和搅拌）进行施工，连接采用整圆套打法施工顺序，连续施工即可做成地下连续墙，同时根据不同需要，作深开挖基础维护、止水、地基加固、也可插入工字钢做工法桩等工程。
FIVE SHAFTS SOlL MIXING DRlLL RlG is a strong stirring and microdisturbance soillessmulti-axis stirring rigCompared with the traditional mixing drill, the strong stirring disturbance soilless multi-axis mixingpile machine is equivalent to 5 MJS(high pressure rotary jet machine), with the characteristics ofsaving cement (can save 50%), no replacement residue, energy saving and high eficiency (eficien.cy increased by 100%), etc., is a green and energy-saving construction equipment. The construction process is basically similar to the three-axis, in accordance with the "two spray and twomixing" construction process (that is, both sinking and lifting are shotcrete and mixing), theconnection adopts the whole round set construction sequence, continuous construction can bemade into an underground continuous wall, and according to different needs, deep excavationtoundation maintenance, water sealing, foundation reintorcement, can also be inserted l-steelwork pile and other projects.
产品亮点：
- 快速搅拌：钻杆钻速可达28rpm
- 高效作业：五根钻杆并排布置，提高单次成桩根数，并有效减少搭接冷缝的出现机率，从而提高了基坑止水效果
- 上下喷浆（专利技术）：钻头处喷浆口采用上下喷浆模式，通过钻杆正转与反转打开不同的喷浆口，实施喷浆
- 节能环保：采用桩土非置换模式，减少水泥浪费，无须处理渣土
- 智能化监控系统：对输送的浆液进行实时监控，并且可人为控制不同深度变量喷浆，提升浆液的使用功效
- Fast mixing：The drilling speed of the drill rod can reach 28rpm
- Eficient operatin：fve dillrods are aranged side by side to increase the number of piles formed ata time and efectively reauce the probabity of overlappingcold joints, thereby improving the water-stopping effect of the foundation pit
- Upper and lower cement jetting （patented technology）：The jeting nozzle at the dril bit adopts the upper and lower ietting mode, and dierent ieting nozlesare opened by forward and reverse rotation of the drill rod to implement shotcreting
- Energy saving and environmental protection: The pile-sol non-replacement mode is adopted to reduce cement waste and no slag treatment is required
- Intelligentmonitoringsystem: Real-time monitoring of thetransported slurry, and variable jetting at different depths can be manually controlled to improve theuse efficiency of the cement

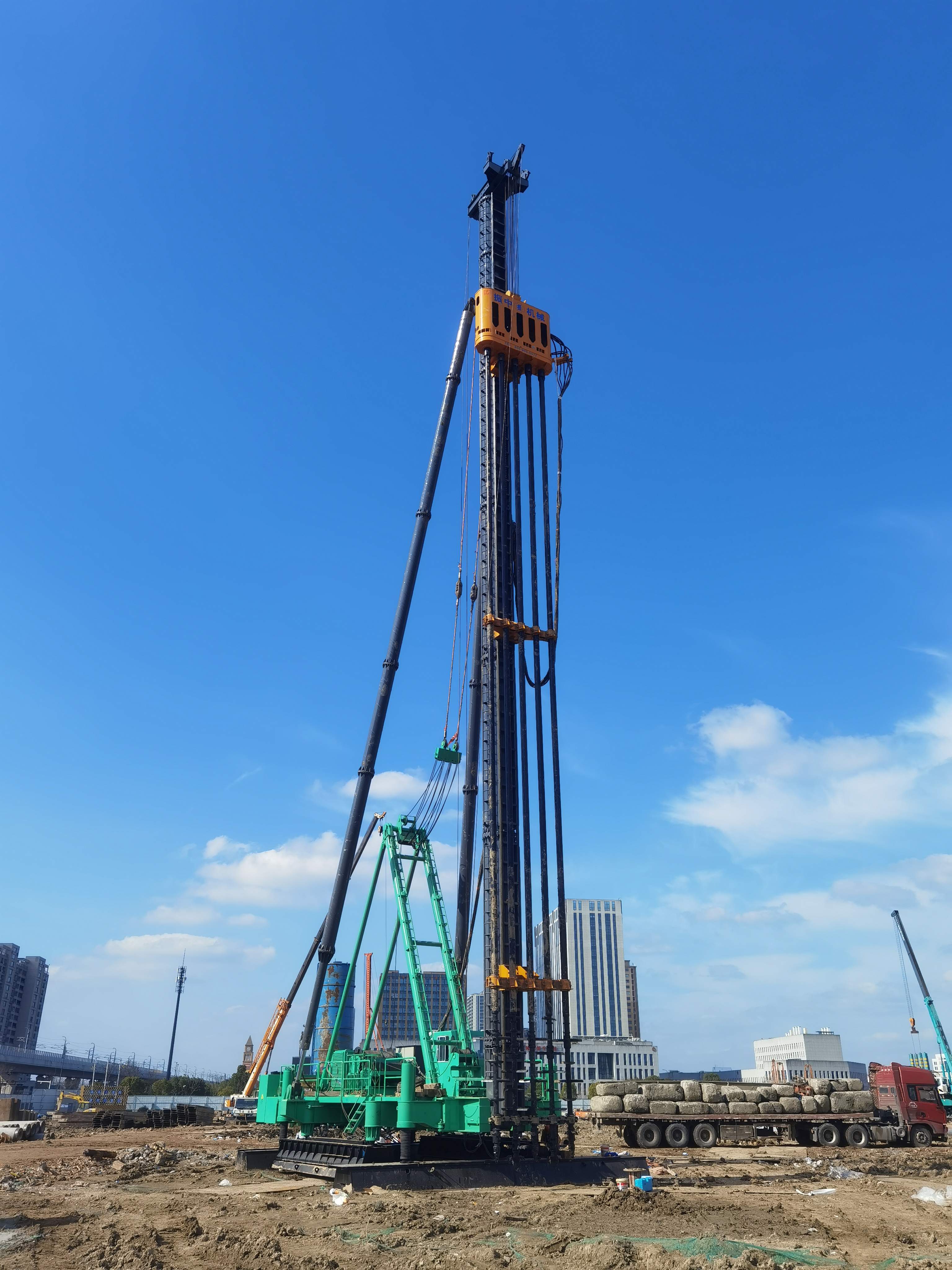

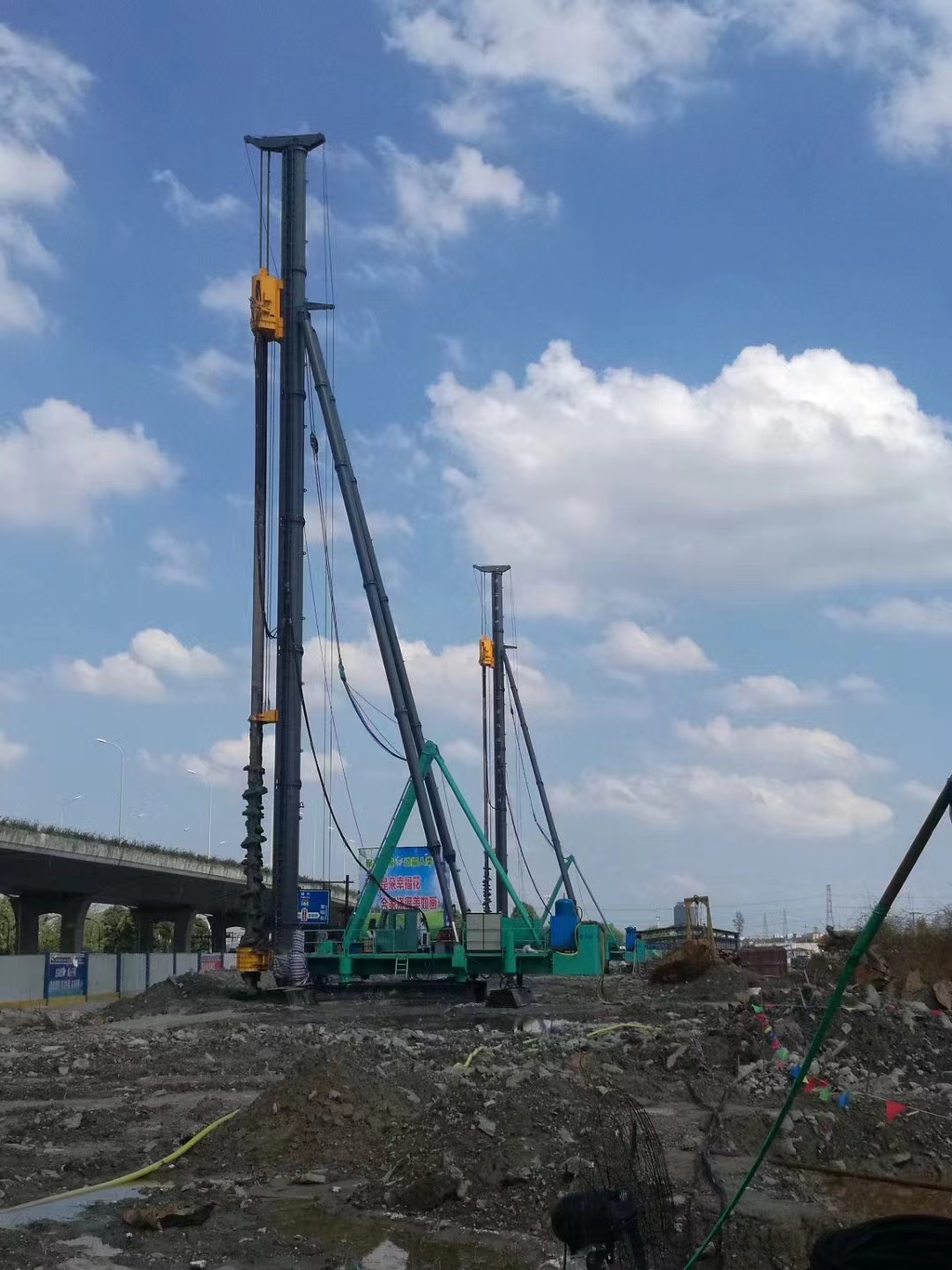

案例：
嘉兴
杭州
宁波
